Home Of the best and safest jack stand support system for your car

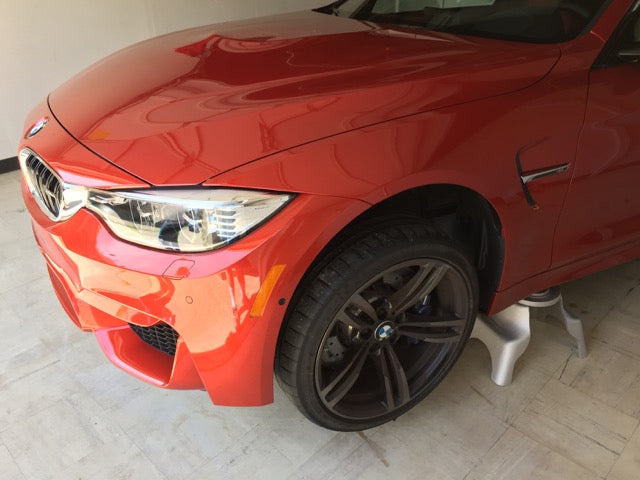

Jackpoint JackStands are designed so you can lift you car on the factory jacking location with a common floor jack and support your car on the Jackpoint JackStand using the same location used to lift the car. The jackpoint jack pad is designed to fit securely on the lifting plate of your jack. The pad is then aligned with the jacking location on your car and the car is lifted with the pad in place.
This process can then be repeated to raise the car on additional jack stands. Simply reverse the process to put the car back on the ground.
Jackpoint Jackstands are 12 inches high, 16 inches wide, and 12 inches deep overall. This provides a wide and deep base that is stable and prevents tipping. Though shorter than some jack stands, Jackpoint Jackstands provide greater ground clearance when used in pairs.
All About Jackpoint Jackstands

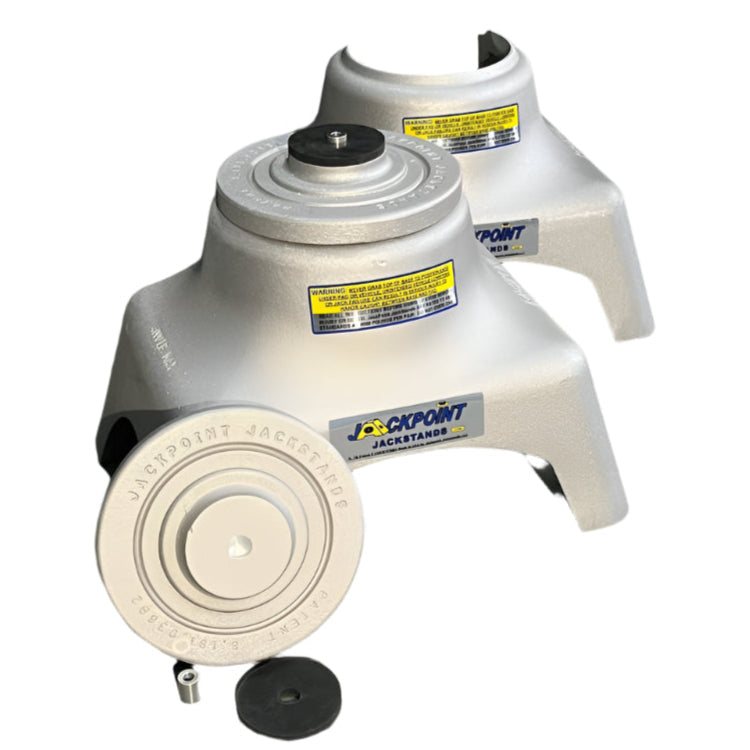

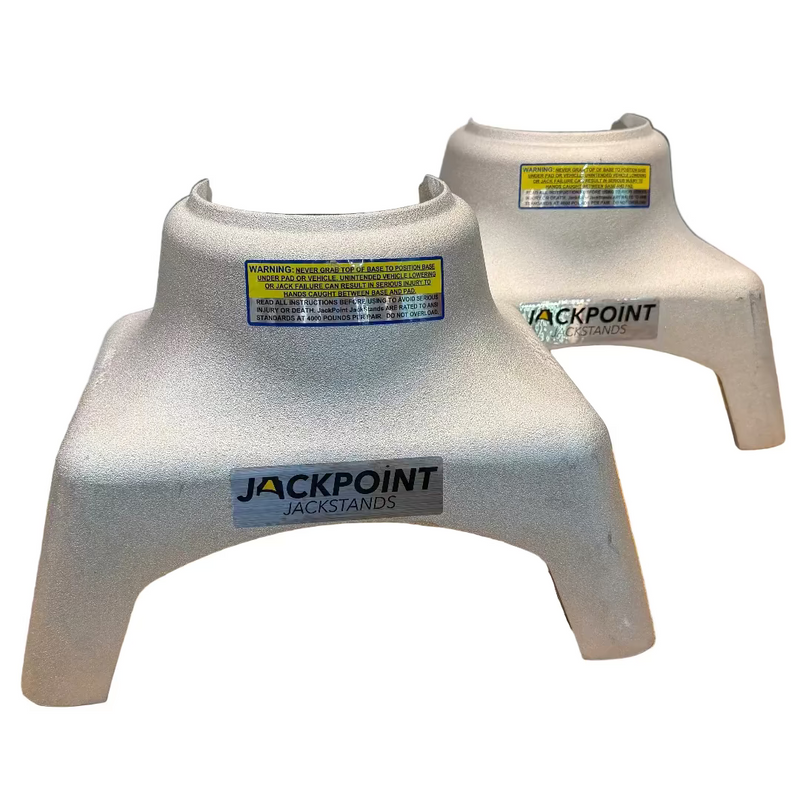

The unique design features of Jackpoint Jackstands include their open front and wide base. These features allow the JackPoint Jackstand to fit around floor jacks while the jack is supporting a vehicle. We use light weight, high performance, high strength Aluminum alloy and wall thicknesses of 1/2 inch or more to evenly distribute load throughout the jack stand base. The results are jack stands that meets ANSI standards at 4000 pounds and a stable base nearly twice as wide as conventional jack stands.
The Jackpoint Jackstand has a wider, more stable base. But, Unlike conventional jack stands, Jackpoint Jackstands are stackable. Two Jackpoint Jackstands take about the same storage space as two conventional jack stands.

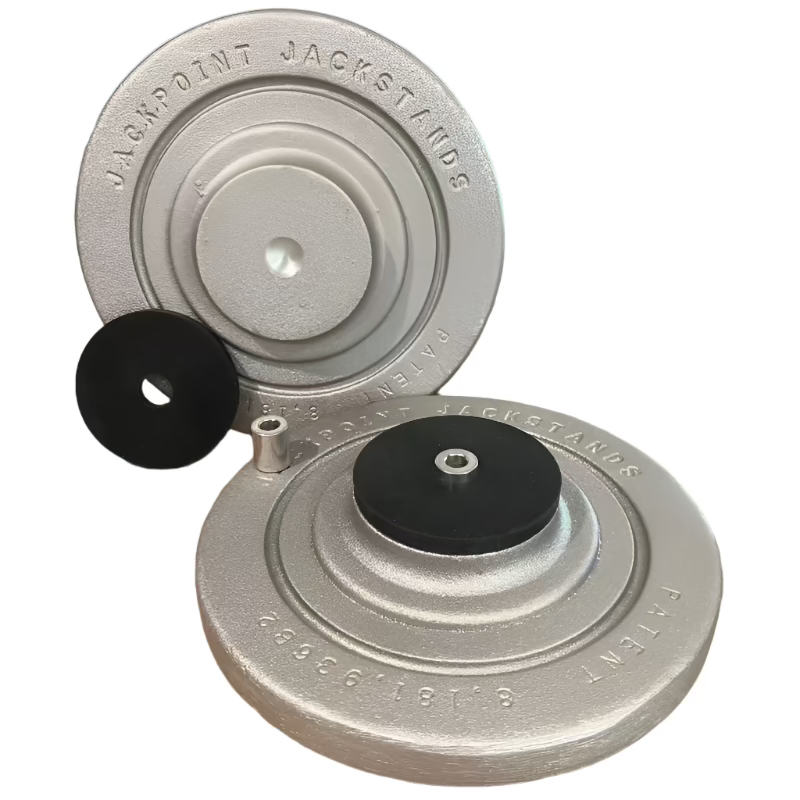

Another unique feature is the contoured, interlocking pad and base design. The bottom of the pad is angled to match a parallel angle in the top of the base. These parallel surfaces help align and center the base under the pad as the pad is lowered on to the base. Simultaneously, the same pad and based surfaces are contoured with matching surfaces that lock the pad in place once it is resting on the base. The load on the pad actually makes the pad more secure on the base creating a unified, secure structure to support the vehicle.
Jackpoint Jackstands are 12 inches high, 16 inches wide, and 12 inches deep overall. This provides a wide and deep base that is stable and prevents tipping. Though shorter than some jack stands, Jackpoint Jackstands provide greater ground clearance when used in pairs because they support the vehicle at a location that takes advantage of geometry when the front or the back of the vehicle is supported.
Also unique to the Jackpoint Jackstand is the top surface of the pad which is designed to match the jacking location on your car. Some auto manufacturers use reinforced pinch welds on the unibody chassis to create the factory jacking location. Other manufacturers use a flat surface with a hole or other recessed point in the flat surface as the jacking location. The basic Jackpoint Jackstand pads are designed to accommodate these common, but different jacking configurations.

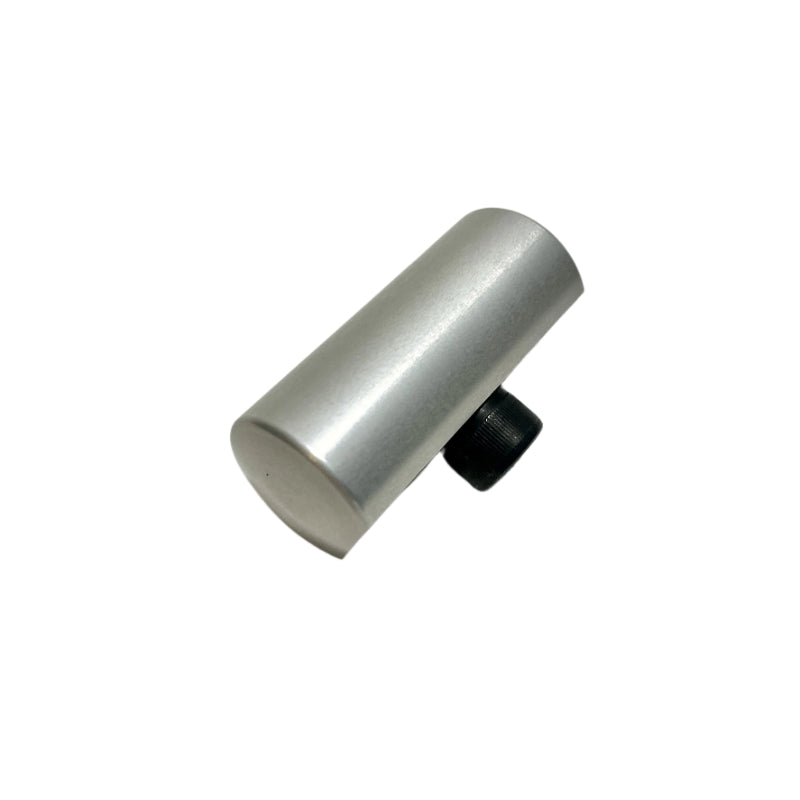

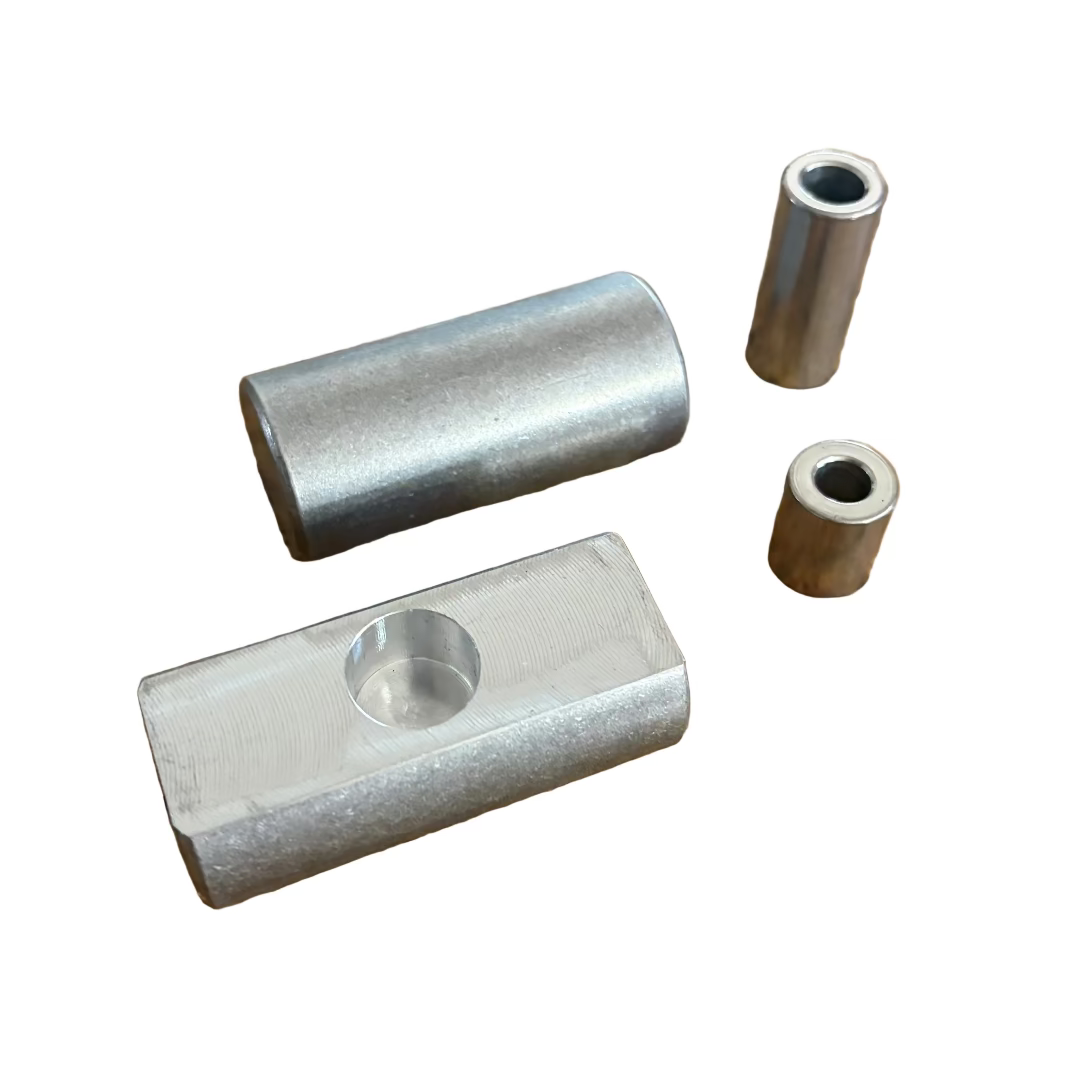

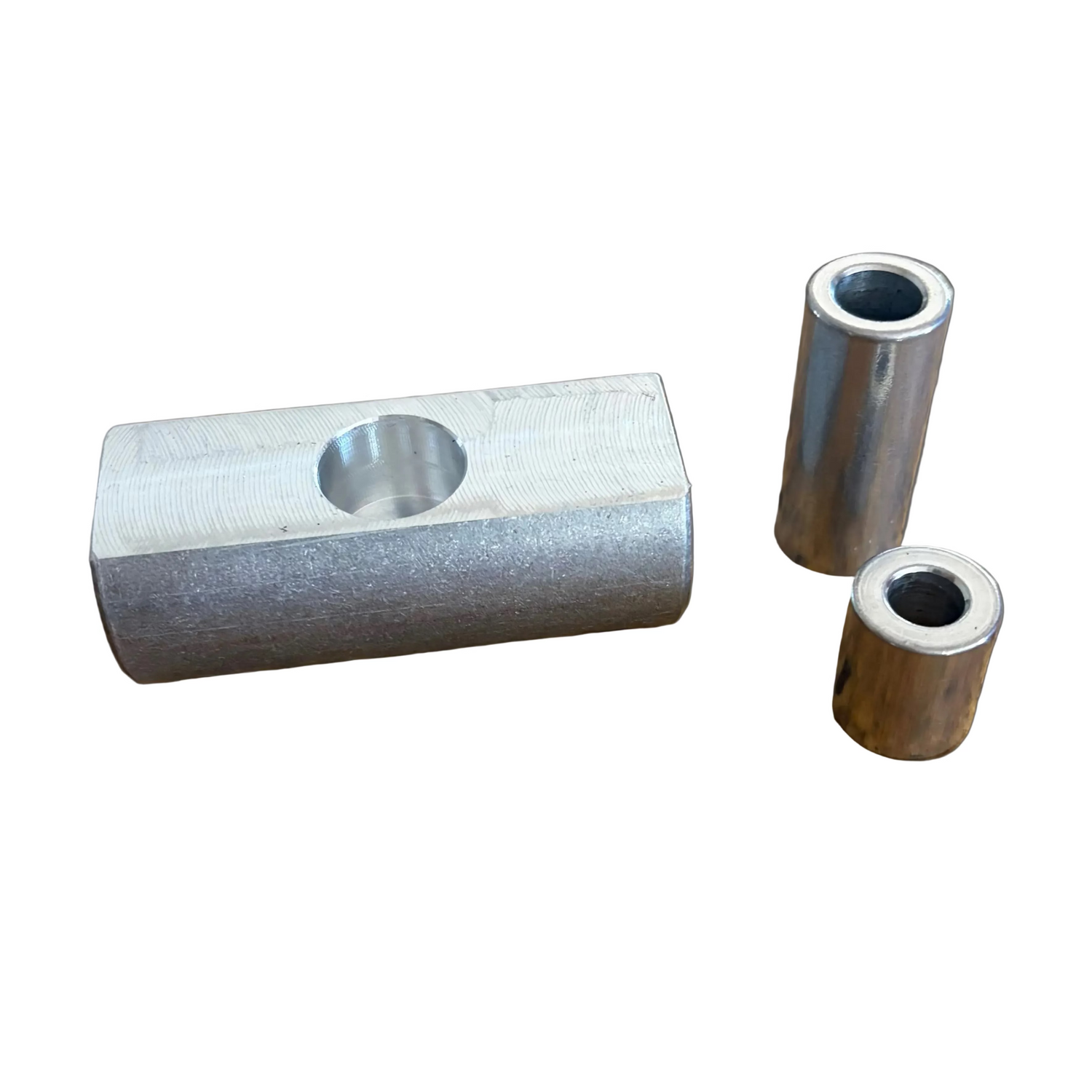

Jackpoint jackstands are available with different pads for different cars. Using the correct pad, you can easily solve the problem of proper jack stand placement.
